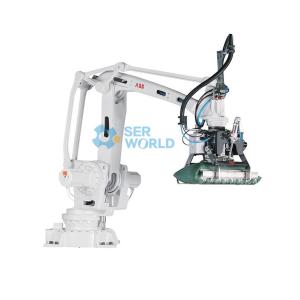

High Intelligent Palletizing Robot Stacking Robot Arm for Handling
Performance Features:
(1) The manipulator stacker is applicable to the stacking and handling of cartons, plastic boxes, bags, plastic buckets and other materials, with high production efficiency.
(2) It can replace or assist the operators to complete all kinds of boring, dangerous, toxic and harmful work.
(3) It is widely used in the production of feed, fertilizer, flour, grain and oil industries.
(4) Supporting auxiliary devices: bale changer, conveyor line, bale chute, spiral slide, buffer belt, leveling device, upper flattening device, lower vibration device
General parameters:
1. Power requirement: 380V 50HZ, power: about 60-80KW
2. Basic floor area (length * width): 12.5m * 8m, workshop height: ≥ 4.0m
3. Concrete thickness of installation ground: ≥ 160mm
Technical parameter :
|
Industry |
Model |
Grab form |
Capacity |
Specification |
Tray size |
Stacking form |
|
|
(pkg/h) |
(t/h) |
||||||
|
Feed |
LP130-1 |
Single grasping |
900-950 |
36-45 |
20-50kg/Pkg |
1.6m* 1.4m |
Three vertical two horizontal, six pkgs/layer |
|
LP180-1 |
Double grasping |
1200-1300 |
48-50 |
40kg/Pkg |
|||
|
LP210-1 |
Double grasping |
1100-1200 |
55-60 |
50kg/Pkg |
|||
|
Chemical Industry |
LP130-1 |
Single grasping |
900-950 |
36-45 |
20-50kg/Pkg |
1.5m* 1.2m |
Three vertical two horizontal, |
|
LP180-1 |
Double grasping |
1200-1300 |
48-50 |
20-40kg/Pkg |
|||
|
LP210-1 |
Double grasping |
1100-1200 |
55-60 |
20-50kg/Pkg |
|||
|
Industry |
Model |
Grab form |
Capacity |
For wheat (t/d) |
Tray size |
Stacking form |
||
|
(25kg/pkg) |
(10kg/pkg) |
|||||||
|
(pkg/h) |
(t/h) |
|||||||
|
Grain and oil |
LP130-1 |
Single grasping |
900-950 |
22.5 |
300-600 |
1.4m* 1.1m |
Three vertical and two horizontal |
Two horizontal and six vertical |
|
LP180-1 |
Double grasping |
1200-1300 |
30 |
500-1000 |
||||
