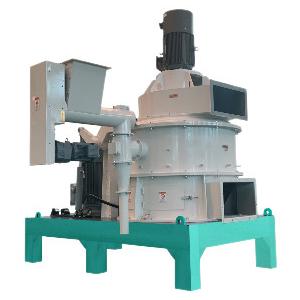

L110 Feed Processing And Crushing Equipment Feed Grinding Machine Ultra-Fine Pulverizer
1. Application scope:
SWFL Series Vertical Ultra-Fine Grinder is a novel processing equipment designed for feed mills of all sizes. It processes coarsely crushed materials (e.g., corn, sorghum, grains, fishmeal) through pre-treatment steps including screening, magnetic separation, and mixing, then pulverizes them into ultra-fine particles. Particularly suitable for micro/ultra-fine grinding of aquatic feeds (shrimp, soft-shelled turtles, eels) and juvenile animal feeds.
2. Main features:
3. Technical parameters:
| Model | SWFL110 | SWFL130 | SWFL150 | SWFL180 |
| Rotor Diameter(mm) | 1100 | 1300 | 1500 | 1800 |
| Rotor Speed (r/min) | 1870 | 1700 | 1450 | 1260 |
| Power (kw) | (110/135)+7.5+1.5 | (132/160)+15+1.5 | 160+15+1.5 | 220+22+2.2 |
| Capacity(t/h) | 2.5-5 | 3-6 | 4.5-8 | 7-12 |
4. Structural diagram of vertical ultral-fine pulverizer
1. Main motor 2. Hydraulic opening mechanism (optional)
3. Machine base 4. Grading pulley support
5. Observation hole 6. Pedestal
7. Bearing pedestal of grading pulley
8. Grading pulley 9. Belt pulley of main shaft
10. Main shaft seat 11. Grinding disc 12. Toothed ring
13. Split-flow hood 14. Central support 15. Upper cover
16. Feeding system 17. Coupling
18. Supporting seat of grading pulley motor
19. Grading pulley motor
5. Processing flow and configuration
| NO. | Q'ty | Name |
|
| 3001 | 1 | High level indicator | |
| 3002 | 1 | Grinding bin | |
| 3003 | 1 | Low level indicator | |
| 3004 | 1 | Pneumatic Slide Gate | |
| 3101 | 1 | Vertiacl Pulverizer | |
| 3102 | 1 | Air duct | |
| 3103 | 1 | Cyclone discharger | |
| 3104 | 1 | Air lock | |
| 3105 | 1 | Silencer | |
| 3106 | 1 | Centrifugal fan | |
| 3107 | 1 | Dust collector | |
| 3108 | 1 | Air lock | |
| 3109 | 1 | Screw conveyor | |
| 3110 | 1 | Surge Hopper | |
| 3111 | 1 | Two-way conveyor | |
| 3112 | 1 | Spuare plan sifter | |
| 3113 | 1 | Screw conveyor | |
| 3114 | 1 | Pneumatic three-way gate |
